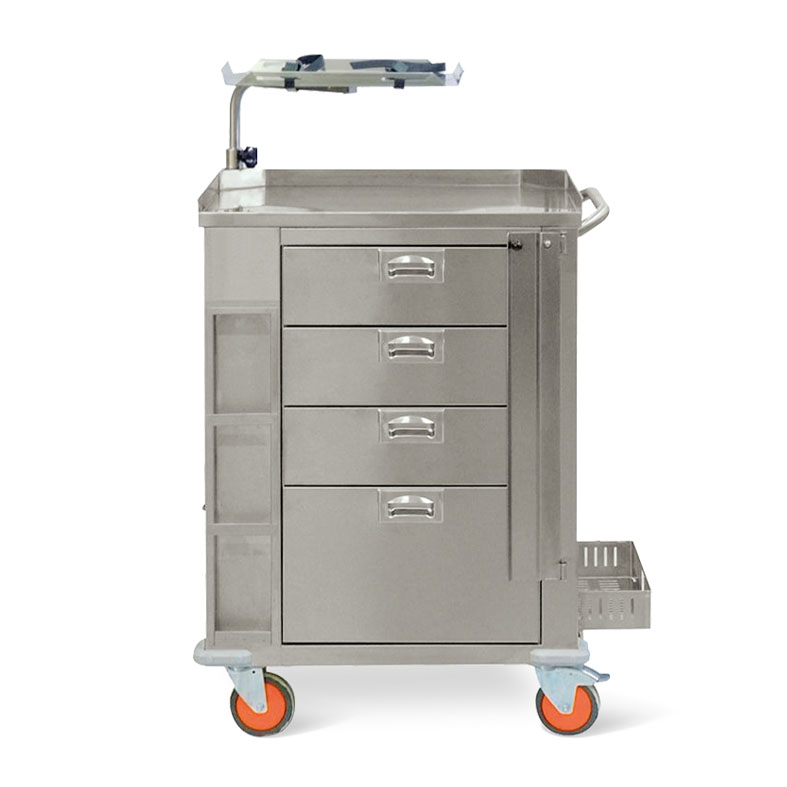

LUXOR AM – MRI EMERGENCY TROLLEY

BODY

Structure made of AISI 304 stainless steel, thickness 10/10, that can be washed and disinfected.

WORKTOP

Made of AISI 304 SB stainless steel with raised edges on three sides.

Stainless steel 360° swivel defibrillator tray with raised edges.

DRAWER UNIT

Removable drawers completely made of AISI 304 SB stainless steel and running on telescopic

slides allowing their complete extraction. They are provided with ergonomic and anti-trauma

handles and stopper. Breakaway lock

1 built-in AISI 304 stainless steel catheter holders

Standard drawer configuration:

3 drawers ext. height 150 mm; 1 drawer ext. height 300 mm.

LEFT SIDE

AISI 304 stainless steel pull-out worktop, provided with stopper

3 built-in AISI 304 stainless steel storage compartments with rail

Built-in AISI 304 stainless steel holder for oxygen cylinder.

RIGHT SIDE

Ergonomic and anti-trauma push handle.

BASE

4 PVC non-marking corner bumpers.

4 thermoformed antistatic swivel castors, Ø 125 mm, mounted on bearings; 2 are lockable.

Suggested configuration is equipped with the following accessories:

- CPR backboard;

- Compartment for suction machine;

- Security seals

Overall dim: 890x630x1040h mm
